TREE SHEAR FOR EXCAVATORS OVER 12 TONS OF WEIGHT

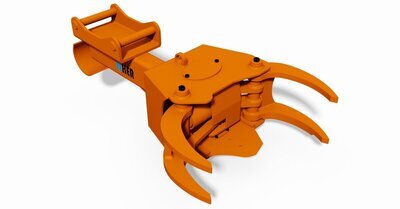

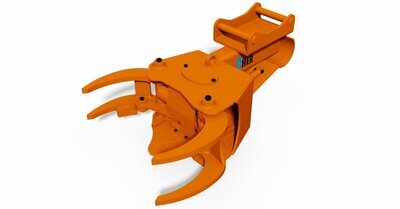

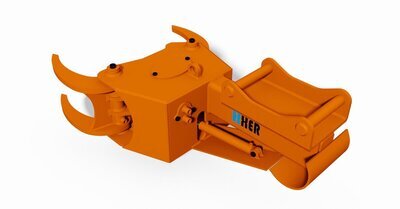

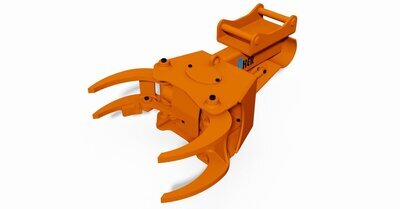

The Axer 650 tree shear is suited for over 12 ton excavators.
The Axer 650 has robust and stiff box shaped frame, unrivaled cutting capacity in it's weight class, 15mm thick cutting blade and optimized geometries, using cutting cylinder that is our own design and manufacture ensures problem free and productive function of the tree shear when working with bigger trees and excavator sizes.
The Axer 650 tree shear is available in 2 models: the K model with bolted cutting blade and the patented L model with retractable cutting blade, which allows loading, weeding and normal grapple use for the same machine. Both tree shear models has hardened cutting blade, which can be detached and replaced.
The Axer 650 tree shear is a robust and powerful solution for middle weight excavators which is manufactured using only the finest materials.
TECHNICAL SPECIFICATIONS
| Mass: | 560 kg |
| Max. oil pressure: | 300 bar |
| Recommended minimum oil flow: | 75 L/min |
| Max. cutting capacity: | 280 mm |
| Grapple opening: | 1000 mm |
| Mounting platform: | excavator |
| Mounting platform weight recommendation: | more than 12 metric tons |
CONSTRUCTION DETAILS
| Frame material: | Wearing plate (Hardox/ Dillidur) |
| Grapple material: | Wearing plate (Hardox/ Dillidur) |
| Pin material: | Tempering steel |
| Cutting blade: |
Hardened steel |
| Available excavator couplings: | All possible |
> 12 t
280 mm
