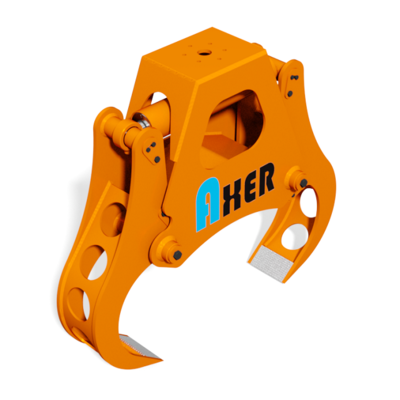

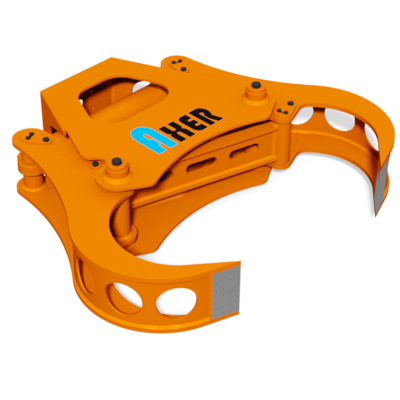

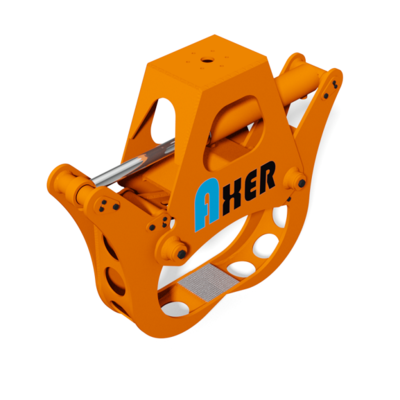

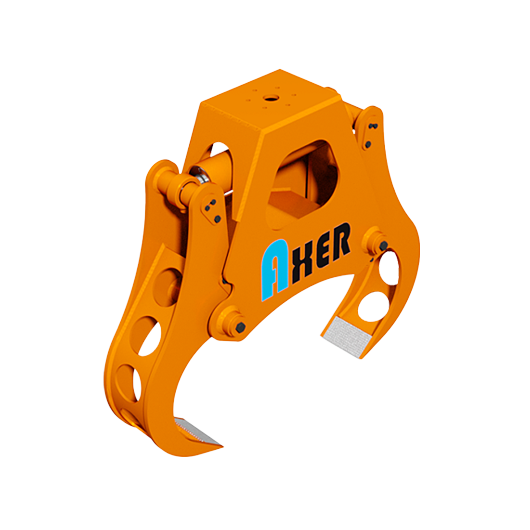

AXER LS 8 SPLITTING GRAPPLE



The Axer LS 8 is a splitting grapple with a very durable design. The entire frame and grapples are made from wear resistant steel and the grapple axles are generously over sized to ensure that they will meet all requirements. Designed to be mounted on excavators, the grapple can be used to split stumps and logs, among other things.

TECHNICAL SPECIFICATIONS
Mass:: 463 kg
Max. oil pressure: 300 bar
Recommended minimum oil flow: 100 l/min
Max. grapple opening: 820 mm
Max. splitting force at tip: 25 tn
Mounting platform: Excavator
