Affordable and effective tree shear

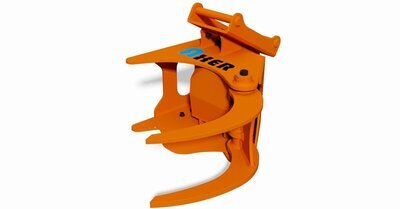

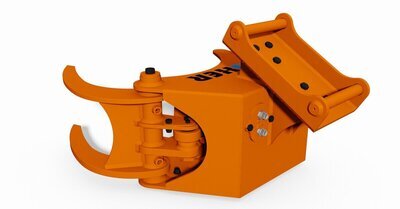

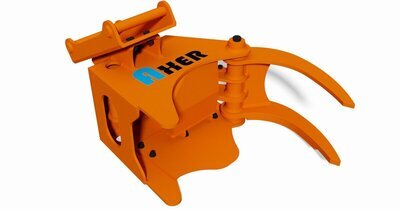

The Axer 230 Tree shear is a lighter weight model due to it's simple but robust box shaped construction which still has the outstanding cutting capacity and a smartly designed grip from tree.
Axer 230 is a brilliant choice for one looking cheaper and robust tree shear due to it's simple and clever design. Axer 230 tree shear has hardened cutting blade which can be detached and replaced.
Built with cutting cylinders of our own design and production, which allows us to have the most advanced geometries and cutting force.
The Axer 230 tree shear is a simple powerhouse which is manufactured using only the finest materials for competitive price.
TECHNICAL SPECIFICATIONS
| Mass: | 270 kg |
| Max. oil pressure: | 300 bar |
| Recommended minimum oil flow: | 50 L/min |
| Max. cutting capacity: | 250 mm |
| Grapple opening: | 650 mm |
| Mounting platform: | Excavator |
| Mounting platform weight recommendation: | Less than 9 ton (metric system) |
CONSTRUCTION DETAILS
| Frame material: | Wearing plate (Hardox/ Dillidur) |
| Grapple material: | Wearing plate (Hardox/ Dillidur) |
| Pin material: | Tempering steel |
| Cutting blade: |
Hardened steel |
| Available excavator couplings: | All possible |
< 12 t
280 mm
