Axer 540 L

Axer 540 L

FOR EXCAVATORS OVER 6 TONS



› Made with decades of experience

› Designed for clients' needs

› Finnish design and manufacturing

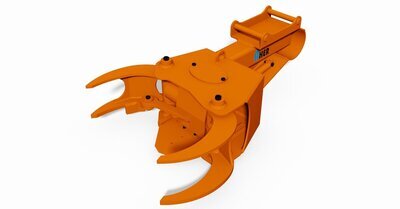

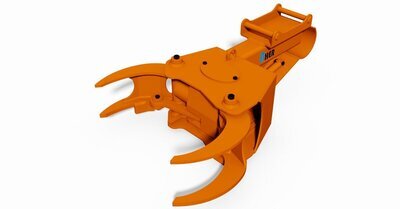

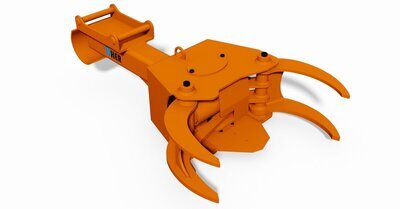

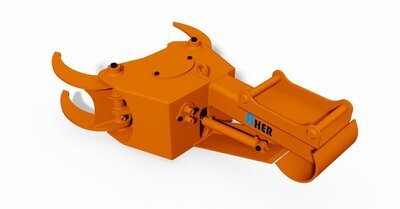

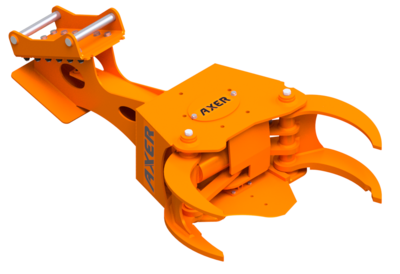

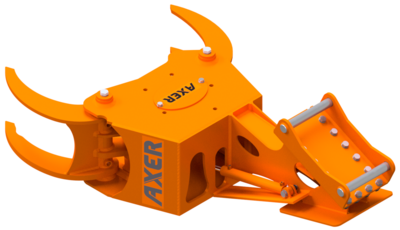

TREE SHEAR FOR EXCAVATORS OVER 6 TONS OF WEIGHT



The Axer 540 tree shear is a good option for excavators above 6 tons weight.



The tree shear's robust box shaped construction, big cutting capacity, 15mm thick hardened cutting blade and optimized geometries, using cutting cylinder that is our own design and manufacture, has allowed us to manufacture a tree shear for mini and middleweight excavators that reaches over 250mm cutting capacity.



The Axer 540 tree shear is available in 2 models: the K model with a bolted cutting blade and the patented L model with a retractable cutting blade, which allows loading, weeding, and normal grapple use for the same machine. Both tree shear models have hardened cutting blade which can be detached and replaced.



The Axer 540 tree shear is a robust and powerful solution for mini and middleweight excavators which is manufactured using only the finest materials.



 See accessories here ›



TECHNICAL SPECIFICATIONS
Mass: 440 kg
Max. oil pressure: 300 bar
Recommended minimum oil flow: 75 L/min
Max. cutting capacity: 280 mm
Grapple opening: 1000 mm
Mounting platform: Excavator
Mounting platform weight recommendation: Less than 12 metric ton



CONSTRUCTION DETAILS
Frame material: Wearing plate (Hardox/ Dillidur)
Grapple material: Wearing plate (Hardox/Dillidur)
Pin material: Tempering steel
Cutting blade:

Hardened steel

Available excavator couplings: All possible
