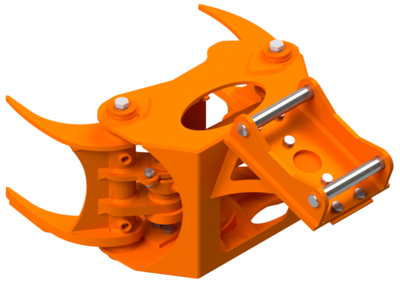

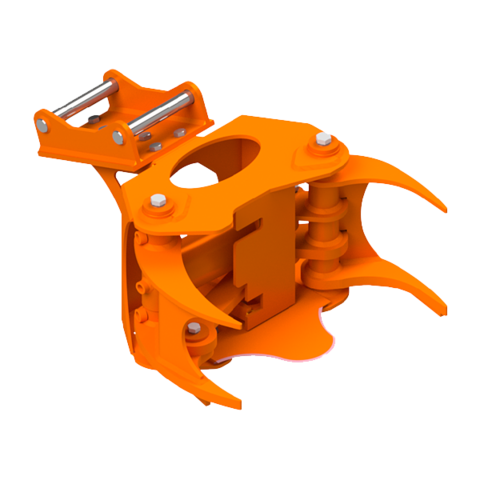

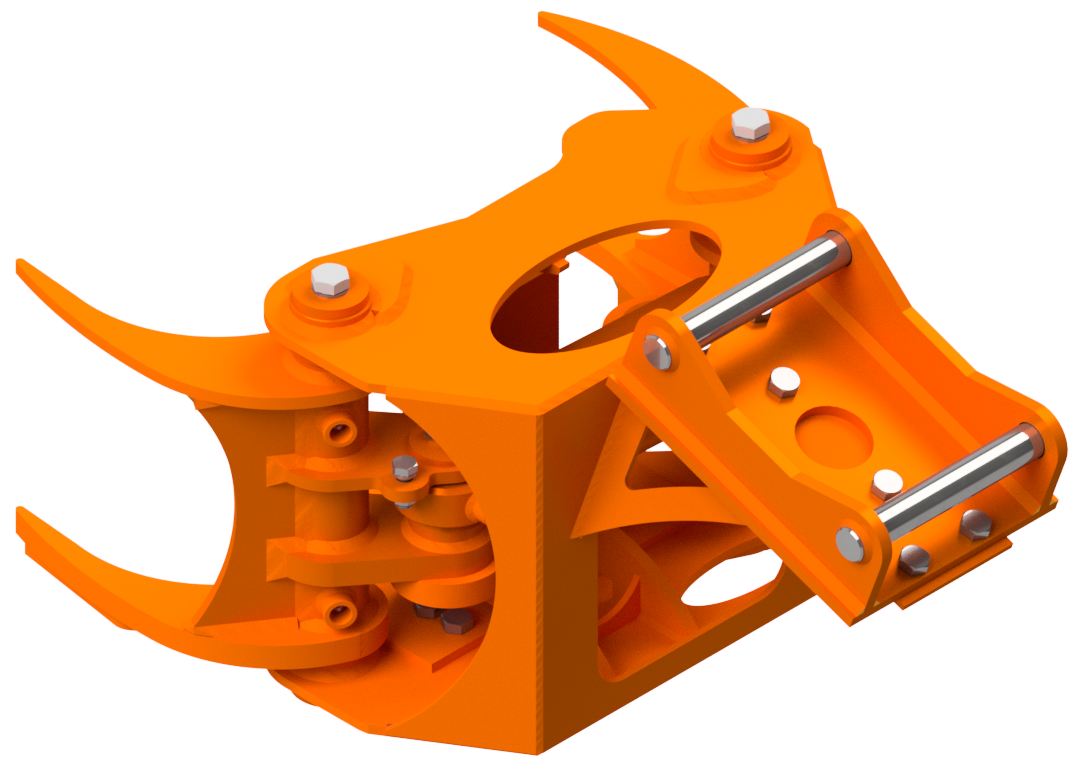

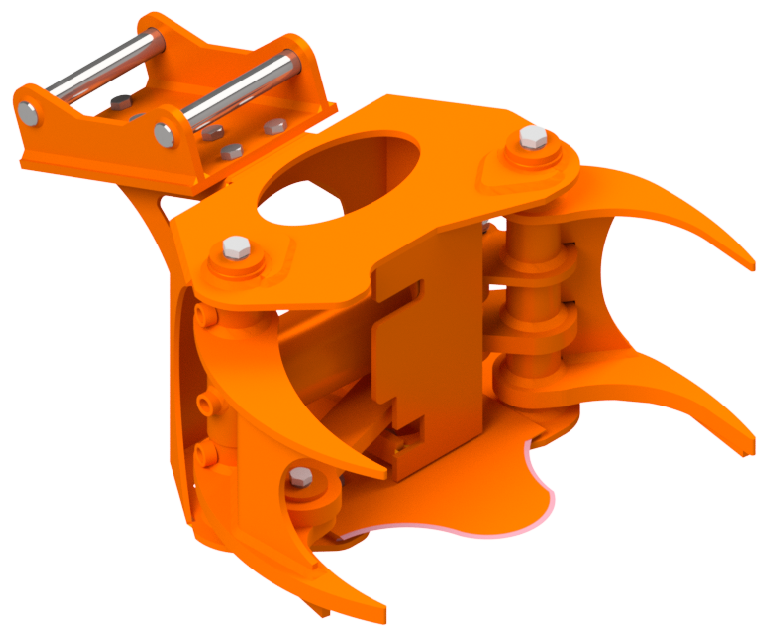

The most robust treeshear for 3-7 Ton excavators
Lightweight yet strong – the Axer 120K. This treeshear is designed from long experience, especially for smaller excavators where agility, durability, and great power are required. The lightweight yet wear-resistant steel structure makes handling easier, ensures a long service life, and provides reliable performance even in demanding conditions.
In the Axer 120K model, high-quality materials, optimized geometries, and components come together to deliver durability, efficiency, and a wide opening. Its frame is made from a box structure of wear-resistant steel – proven to be the most durable solution. The pins are made of quenched and tempered steel to guarantee maximum strength. The grapples are also manufactured from wear-resistant steel to withstand heavy use.
Why choose the Axer 120K?
- Wide opening enables efficient handling of trees of various sizes
- Lightweight design reduces stress on the machine – saves fuel and components
- Engineered for reliable operation even in demanding northern conditions
- High efficiency thanks to precisely optimized geometry
The Axer 120K is the right choice for customers who value durability, ease of use, and long service life – without compromising efficiency.
Applications
- Energy wood harvesting for biomass production
- Thinning work, as well as clearing in construction and landscaping sites
- Collecting and handling small trees along roadsides and in yard areas
TECHNICAL SPECIFICATIONS
| Mass: | 190 kg |
| Max. oil pressure: | 300 bar |
| Recommended minimum oil flow: | 50 L/min |
| Max. cutting capacity: | 200 mm |
| Grapple opening: | 720 mm |
| Mounting platform: | Excavator |
| Mounting platform weight recommendation: | 3-7 ton |
CONSTRUCTION DETAILS
| Frame material: | Wearing plate (Hardox/ Dillidur) |
| Grapple material: | Wearing plate (Hardox/ Dillidur) |
| Pin material: | Tempering steel |
| Available excavator couplings: | All possible |
